Flat Bars

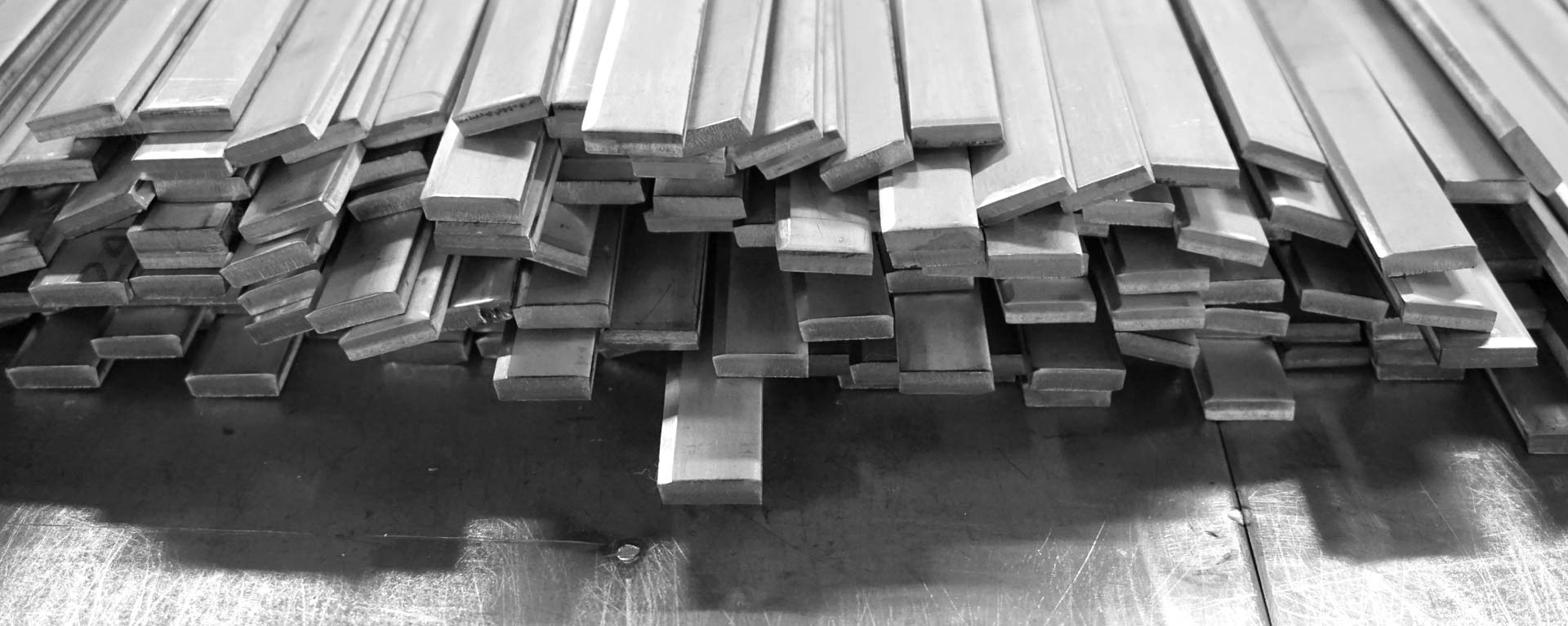

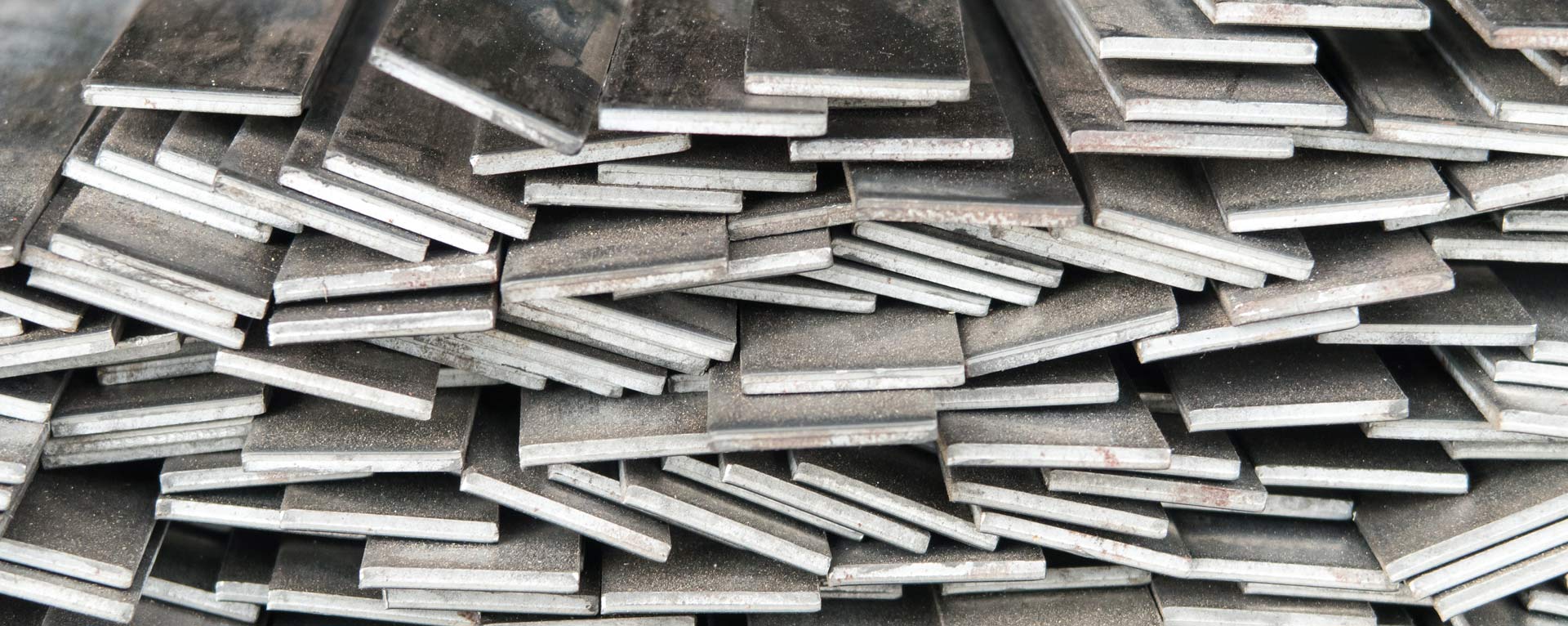

ShreeSatya Group offer a comprehensive range of cost-effective MS-Flat which is known to be the most remarkable form in itself. Although MS Flat has much reduced carbon content, it has exceptional strength and versatility. These find usage for a number of purposes. MS Flat Bars are used by grating manufacturers, cable trays, bright bar industries, automobile and auto-ancillaries, truck trailers, tippers, railways, bus body, elevators and escalators, scaffolding manufacturers, base plates, earthing material, ship building, washers, flanges, clamps and many more engineering industries.

ShreeSatya Group strives to research and develop steel products that promise superior quality and prove to be cost-effective for the infrastructure sector.

View Specification

Place Enquiry

For further details or any query, drop us a your details and let us take it up from there at the earliest.

Your Name

Phone

City

Your Message

Certificates

ShreeSatya Group has been assessed and certified as an ISO 9001:2015 company meeting all the required parameters. The ShreeSatya Group company is BIS certified and has also received an ISI mark by the Bureau of Indian Standards.

Size in mm	Average Weight
Size in mm	KG/MTR	KG/FT
20 x 4	0.79	0.24
20 x 5	0.79	0.24
21 x 6	1.00	0.30
25 x 3	0.59	0.19
25 x 4	0.79	0.24
25 x 5	0.98	0.30
25 x 6	1.18	0.40
25 x 8	1.57	0.50
25 x 10	1.9	0.6
25 x 12	2.36	0.70
28 x 6	1.30	0.40
30 x 3	0.71	0.22
30 x 4.7	1.11	0.34
30 x 5	1.18	0.40
30 x 60	1.40	0.40
32 x 5	1.26	0.40
32 x 6	1.50	0.50
32 x 8	2	0.60
32 x 10	2.50	0.80
32 x 12	3	0.90
38 x 3	0.90	0.30
38 x 5	1.50	0.50
38 x 12	3.60	1.10
40 x 4	1.26	0.38
40 x 5	1.57	0.50
40 x 6	1.90	0.60
40 x 8	2.50	0.80
40 x 10	3.10	1.00
40 x 12	3.77	1.20
40 x 16	5.00	1.50
40 x 20	6.30	1.90
40 x 25	7.85	2.40
45 x 12	4.20	1.30
45 x 20	7.07	2.15
50 x 4	1.57	2.00
50 x 5	1.96	0.60
50 x 6	2.36	0.70
50 x 8	3.14	1.00
50 x 10	3.90	1.20
50 x 12	4.7	1.40
50 x 16	6.28	1.90
50 x 20	7.85	2.40
50 x 25	9.80	3.00
50 x 32	12.56	3.83
60 x 6	2.83	0.87
63 x 6	3	0.9
65 x 5	2.55	0.78
65 x 6	3.06	0.93
65 x 8	4.08	1.2
65 x 10	5.1	1.6
65 x 12	6.10	1.90
65 x 16	8.16	2.5
65 x 20	10.2	3.1
65 x 25	12.8	3.9
65 x 32	16.33	4.98
65 x 40	20.41	6.22
65 x 50	25.51	7.78
75 x 5	5.7	1.7
75 x 6	3.53	1.10
75 x 8	4.71	1.4
75 x 10	5.89	1.8
75 x 12	7.70	2.10
75 x 16	9.42	2.90
75 x 20	11.8	3.6
75 x 25	14.7	4.5
75 x 32	18.9	4.5
75 x 40	23.6	7.2
75 x 50	29.44	8.97
80 x 8	5.02	1.53
80 x 10	6.28	1.97
100 x 5	3.93	1.2
100 x 6	4.71	1.4
100 x 8	6.28	1.9
100 x 10	7.85	2.4
100 x 12	9.42	2.90
100 x 16	12.56	3.8
100 x 20	15.70	4.80
100 x 25	19.60	6.00
100 x 30	23.55	7.18
100 x 32	25.12	7.66
100 x 40	31.40	9.57
100 x 50	39.25	11.96
125 x 6	5.90	1.80
125 x 8	7.90	2.40
125 x 10	9.80	3.00
125 x 12	11.80	3.60
125 x 16	15.70	4.80
125 x 20	19.60	6.00
125 x 25	24.50	7.50
125 x 32	31.40	9.57
125 x 40	39.25	11.96
130 x 12	12.25	3.73
150 x 6	7.07	2.20
150 x 8	9.42	2.90
150 x 10	11.80	3.60
150 x 12	14.10	4.30
150 x 16	18.80	5.70
150 x 20	23.60	7.20
150 x 25	29.40	8.90
150 x 32	37.68	11.48
150 x 40	47.10	14.36
160 x 30	37.68	11.94
178 X 6	8.38	2.56
178 X 8	11.18	3.41
180 X 12	16.96	5.17
180 X 20	28.26	8.62
200 x 6	9.40	2.90
200 x 8	12.56	3.80
200 x 10	15.70	4.80
200 x 12	18.80	5.70
200 x 16	25.10	7.70
200 x 20	31.40	9.60
200 x 25	39.20	12
250 x 6	11.80	3.60
250 x 8	15.70	4.80
250 x 10	19.60	6.00
250 x 12	23.60	7.20
250 x 16	31.40	9.60
250 x 20	39.20	12.00
250 x 25	49.10	15.00
300 x 6	14.10	4.30
300 x 8	18.80	5.80
300 x 10	23.55	7.20
300 x 12	28.30	8.60
300 x 16	37.70	11.50
