ShreeSatya Group TMT bars come with a series of inherent advantages that includes consistent quality along with uniform grades, dimensions and tolerances. Our TMT Bars have superior stability, properties for higher durability and easy workability. ShreeSatya Group offers the widest range of construction steel. Its extensive range of TMT bars meets the rarest and critical needs of civil engineers. The range of Structural Steel offered by the company meets the maximum demands of the engineering sector.

TMT ReBars Fe 500D

8 | 10 | 12 | 16 | 20 | 25 | 28 | 32 | 36

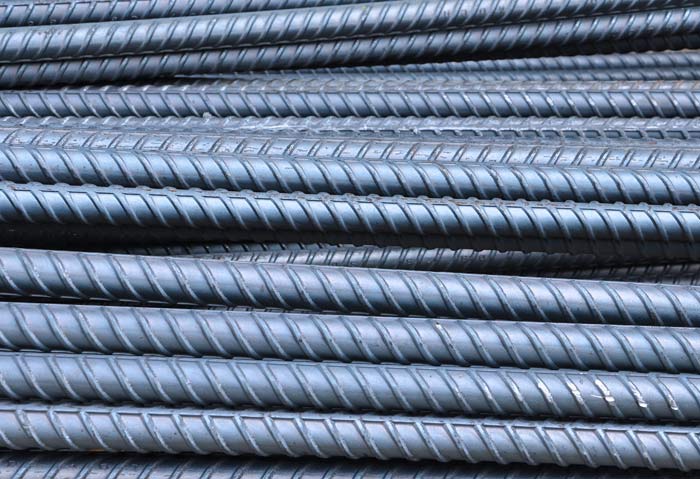

High Strength for Critical Applications

ShreeSatya Group TMT Re-bars Fe 500D is a special grade of TMT bars produced under specific process conditions, resulting in increased strength as compared to other grades of TMT Re-bars. Fe 500D Re-bars are ideal for applications in heavy load RCC structures like flyovers, dams, bridges and other critical structures where high yield load (design load) is required without compromising on the ductility. In addition to the above mentioned features, ShreeSatya Group TMT Re-bars also exhibit the following characteristics.

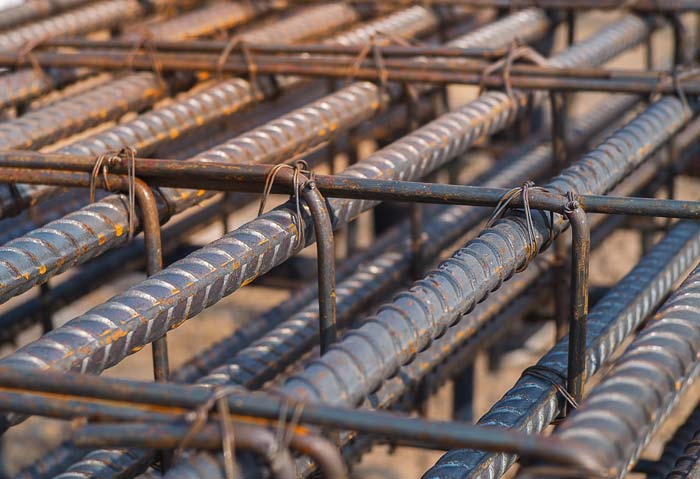

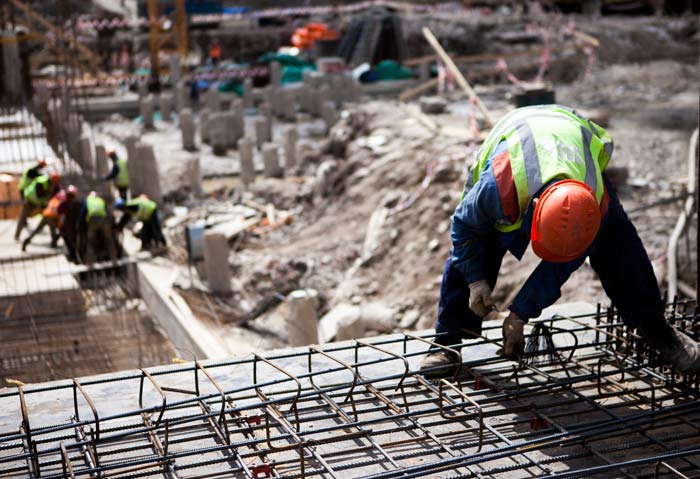

Special Weldability

ShreeSatya Group TMT Re-bars do not require pre or post welding treatment as they have low carbon content and are produced under controlled thermo-mechanical treatment.

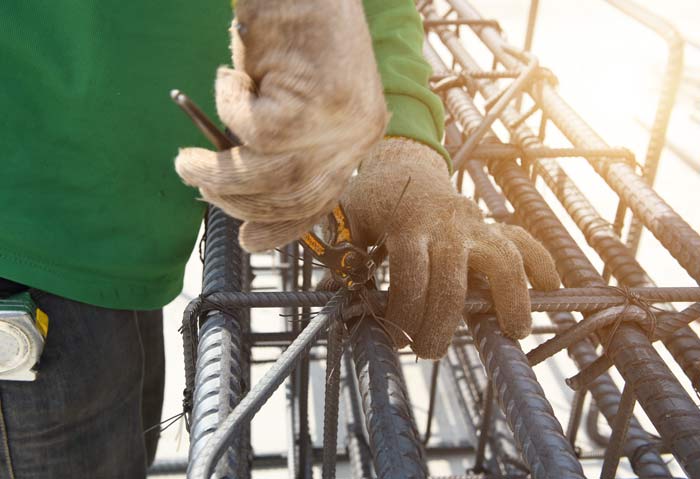

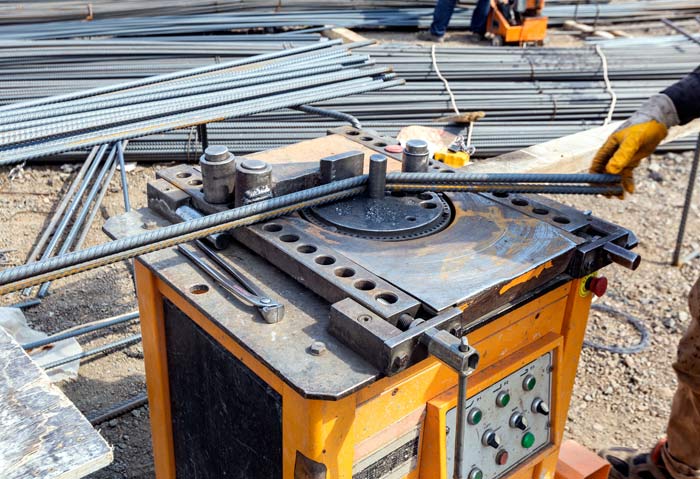

Higher Corrosion Resistance

ShreeSatya Group TMT Re-bars have higher corrosion resistance. The controlled thermo-mechanical treatment also results in a uniform and thick tempered martensitic rim, completely free from internal stress. This martensitic rim improves the corrosion resistance as well as fatigue strength of the ShreeSatya Group TMT Re-bars Fe 500D when compared to other TMT Re-bars.

Cost Advantage

Ast = 0.85xMxD/fy where
Ast = Area of Steel in tension
M=Moment in Tension
D = Depth of Section
fy =Stress of Steel in tension

Therefore, It is also evident from the below calculations that higher the tensile strength, lesser is the consumption of steel.

Type of Structure	Steel requirement by using Fe 415	Steel requirement by using Fe500	Saving in Steel by using Fe 500
RCC Foundation Heavy Beam	1.00 MT	0.83 MT	170 KG / 0.17 MT

Or Fe 415/415 D is 415N/mm2 and 500 N/mm2 for Fe 500D TMT Re-bars.

ShreeSatya Group TMT Re-bars Fe 500D is effective over usual HYSD Steel Bars. It saves upto 17% of steel.

Properties

Description	IS: 1786 Fe 500	Satya 500 TMT Re-bars	IS: 1786 Fe 500 D	Satya 500D TMT Re-bars
0.2% Proof Stress(min N/mm2)	500	540	500	560
Ultimate Tensile Strength (min N/mm2)	545	640	565	660
%Total Elongation at max force min	–	–	5	6
%Elongation.min	12	18	16	20
Bend	4d to 5d	3d to 4d	3d to 4d	2d to 3d
Rebend	5d to 7d	4d to 6d	4d to 6d	3d to 5d
Carbon (% max) Phosphorous & Sulphur (% max)	0.300 0.055	0.250 0.050	0.250 0.040	0.220 0.035
Phosphorous + Sulphur (% max)	0.105	0.095	0.075	0.065
CE (% max)	0.42	0.4	0.42	0.35
Nitrogen (ppm max)	120	100	120	100

Or Fe 415/415 D is 415N/mm2 and 500 N/mm2 for Fe 500D TMT Re-bars.

ShreeSatya Group TMT Re-bars Fe 500D is effective over usual HYSD Steel Bars. It saves up to 17% of steel.

Place Enquiry

For further details or any query, drop us a your details and let us take it up from there at the earliest.

Your Name

Phone

City

Your Message

Certificates

ShreeSatya Group has been assessed and certified as an ISO 9001:2015 company meeting all the required parameters. The ShreeSatya Group company is BIS certified and has also received an ISI mark by the Bureau of Indian Standards.

Size in mm	Average Weight
Size in mm	KG/MTR	KG/FT
25 x 25 x 3	1.10	0.30
25 x 25 x 4.5	1.60	0.49
25 x 25 x 5	1.80	0.50
25 x 25 x 6	2.10	0.60
30 x 30 x 3	1.40	0.40
35 x 35 x 3	1.60	0.50
35 x 35 x 4	2.10	0.60
35 x 35 x 5	2.60	0.80
37 x 37 x 3	1.70	0.50
40 X 40 X 3	1.80	0.055
40 x 40 x 4	2.40	0.70
40 x 40 x 5	3.00	0.90
40 x 40 x 6	3.50	1.10
45 x 45 x 4	2.70	0.80
45 x 45 x 5	3.40	1.00
45 x 45 x 6	4.00	1.22
50 x 50 x 3	2.30	0.70
50 x 50 x 4	3.00	0.90
50 x 50 x 5	3.80	1.20
50 x 50 x 6	4.50	1.40
50 x 50 x 8	5.84	1.78
55 x 55 x 4	3.30	1.00
55 x 55 x 5	4.10	1.30
60 x 60 x 4	3.70	1.10
60 x 60 x 5	4.50	1.40
60 x 60 x 6	5.40	1.64
65 x 65 x 4	4.00	1.20
65 x 65 x 5	4.90	1.50
65 x 65 x 6	5.80	1.80
65 x 65 x 8	7.70	2.40
65 x 65 x 10	9.40	2.90
65 x 65 x 12	11.80	3.60
70 x 70 x 7	7.38	2.25
75 x 75 x 5	5.70	1.70
75 x 75 x 6	6.80	2.10
75 x 75 x 8	8.90	2.70
75 x 75 x 10	11.0	3.40
75 x 75 x 12	13.1	4.00
80 x 80 x 6	7.20	2.19
80 x 80 x 7	7.90	2.90
80 x 80 x 8	9.60	2.90
90 x 90 x 6	8.20	2.50
90 x 90 x 7	9.50	2.90
90 x 90 x 8	10.80	3.10
90 x 90 x 10	13.40	4.10
98 x 98 x 9.5	13.09	3.99
100 x 100 x 6	9.20	2.80
100 x 100 x7	10.7	3.30
100 x 100 x 8	12.10	3.70
100 x 100 x 10	14.90	4.50
100 x 100 x 12	17.70	5.40
110 x 110 x 8	13.40	4.08
110 x 110 x10	16.50	5.03
110 x 110 x 12	19.6	5.97
130 x 130 x 8	15.9	4.85
130 x 130 x 10	19.7	6.01
130 x 130 x 12	23.4	7.13

Size in mm	Average Weight
Size in mm	KG/MTR	KG/FT
45 x 30 x 4	2.23	0.68
45 x 30 x 5	2.75	0.80
