Angles

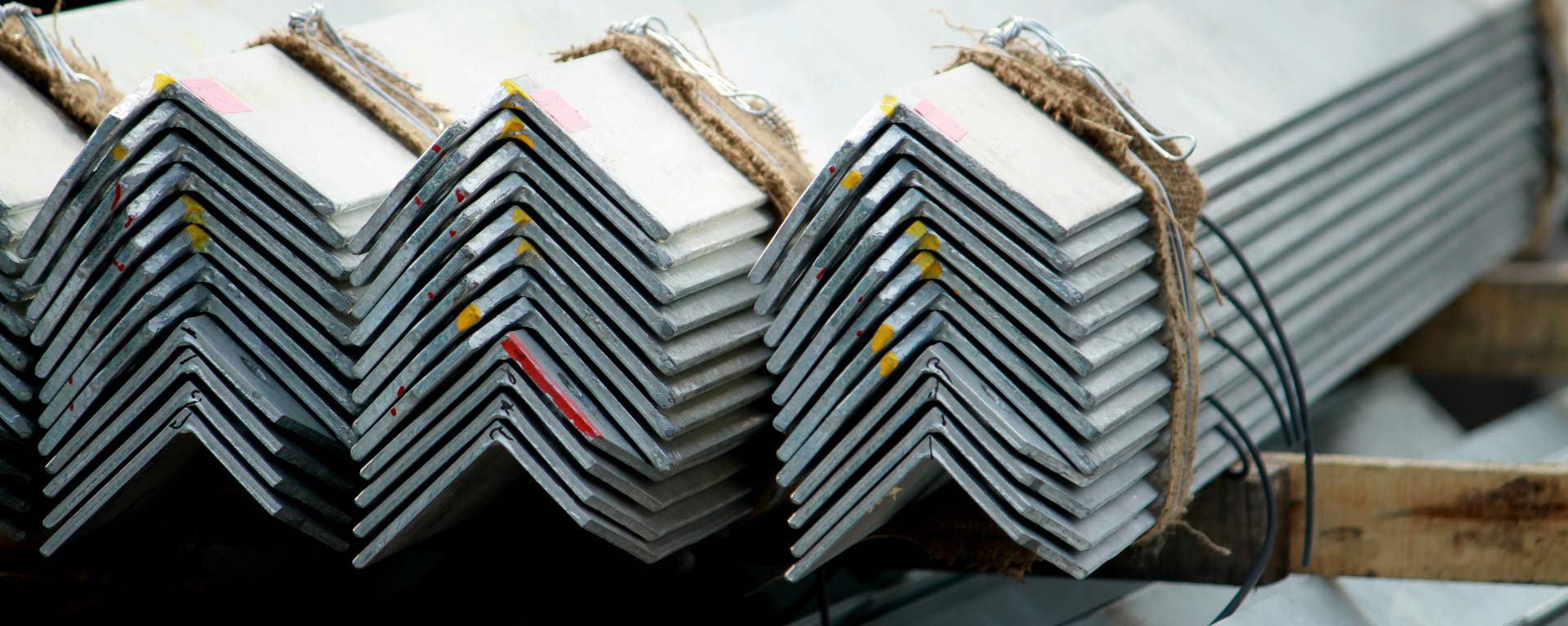

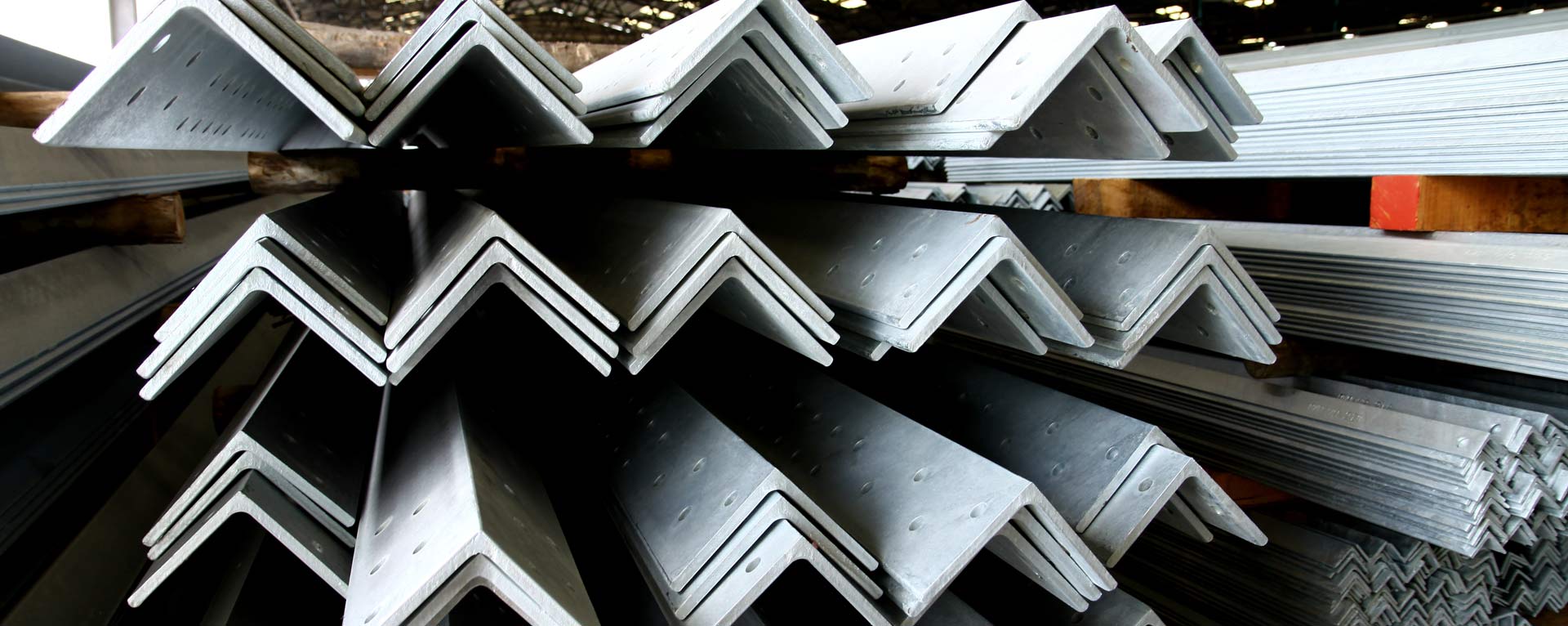

ShreeSatya Group is a certified manufacturer of stainless steel angles, and a variety of tubes, pipes, round bars & channels. With a portfolio of all types of angle bars - stainless steel angle bar, stainless steel angle bar equal, stainless steel angle bar hot rolled and cold drawn, and many more for Towers / Bridges / Construction purpose / galvanising.

ShreeSatya Group is one of the pioneers of this product. These angle bars are ideal for construction sites, manufacturing units, workshops and various other applications.

View Specification

Place Enquiry

For further details or any query, drop us a your details and let us take it up from there at the earliest.

Your Name

Phone

City

Your Message

Certificates

ShreeSatya Group has been assessed and certified as an ISO 9001:2015 company meeting all the required parameters. The ShreeSatya Group company is BIS certified and has also received an ISI mark by the Bureau of Indian Standards.

We are here to help you

ShreeSatya Group is committed to offer the highest level of customer satisfaction. Let us connect to take this further.

Get In Touch

ShreeSatya Group is a certified manufacturer of angles and channels. With a portfolio of all types of angle bars -stainless steel angle bar, stainless steel angle bar equal, stainless steel angle bar hot rolled and cold drawn, and many more, Towers / Bridges / Construction purpose / galvanising

Equal Angles: 25 x 25 x 3mm to 130 x 130 x 12mm

Size in mm	Average Weight
Size in mm	KG/MTR	KG/FT
25 x 25 x 3	1.10	0.30
25 x 25 x 5	1.80	0.50
25 x 25 x 6	2.10	0.60
30 x 30 x 3	1.40	0.40
35 x 35 x 3	1.60	0.50
35 x 35 x 4	2.10	0.60
35 x 35 x 5	2.60	0.80
37 x 37 x 3	1.70	0.50
40 X 40 X 3	1.80	0.055
40 x 40 x 4	2.40	0.70
40 x 40 x 5	3.00	0.90
40 x 40 x 6	3.50	1.10
45 x 45 x 4	2.70	0.80
45 x 45 x 5	3.40	1.00
45 x 45 x 6	4.00	1.22
50 x 50 x 3	2.30	0.70
50 x 50 x 4	3.00	0.90
50 x 50 x 5	3.80	1.20
50 x 50 x 6	4.50	1.40
50 x 50 x 8	5.84	1.78
55 x 55 x 4	3.30	1.00
55 x 55 x 5	4.10	1.30
60 x 60 x 4	3.70	1.10
60 x 60 x 5	4.50	1.40
60 x 60 x 6	5.40	1.64
65 x 65 x 4	4.00	1.20
65 x 65 x 5	4.90	1.50
65 x 65 x 6	5.80	1.80
65 x 65 x 8	7.70	2.40
65 x 65 x 10	9.40	2.90
65 x 65 x 12	11.80	3.60
70 x 70 x 7	7.38	2.25
75 x 75 x 5	5.70	1.70
75 x 75 x 6	6.80	2.10
75 x 75 x 8	8.90	2.70
75 x 75 x 10	11.0	3.40
75 x 75 x 12	13.1	4.00
80 x 80 x 6	7.20	2.19
80 x 80 x 7	7.90	2.90
80 x 80 x 8	9.60	2.90
90 x 90 x 6	8.20	2.50
90 x 90 x 7	9.50	2.90
90 x 90 x 8	10.80	3.10
90 x 90 x 10	13.40	4.10
98 x 98 x 9.5	13.09	3.99
100 x 100 x 6	9.20	2.80
100 x 100 x7	10.7	3.30
100 x 100 x 8	12.10	3.70
100 x 100 x 10	14.90	4.50
100 x 100 x 12	17.70	5.40
110 x 110 x 8	13.40	4.08
110 x 110 x10	16.50	5.03
110 x 110 x 12	19.6	5.97
130 x 130 x 8	15.9	4.85
130 x 130 x 10	19.7	6.01
130 x 130 x 12	23.4	7.13

MS Unequal Angles: 45 x 30 x 4/5

Size in mm	Average Weight
Size in mm	KG/MTR	KG/FT
45 x 30 x 4	2.23	0.68
45 x 30 x 5	2.75	0.80

Rolling Tolerances

Leg length	Sectional weight	Length
Up to 45 mm : ± 1.5 mm 45 mm to 100 mm : ± 2 mm above 100 mm : ± 2 %	3 mm thickness : ± 5 % Over 3 mm thickness :+5/-3%	Size 10 to 16 mm ± 5 % 16 mm and above ± 3 %	For fixed length : ± 100 mm

Please Note: The data given above is indicative. Actual weights may vary.

ShreeSatya Group develops specific sections. Specific sizes in any section can be developed for economical and feasible quantity, in Mild Steel, High Tensile, En 8 / En 8D / EN 9 / EN 16 material.
