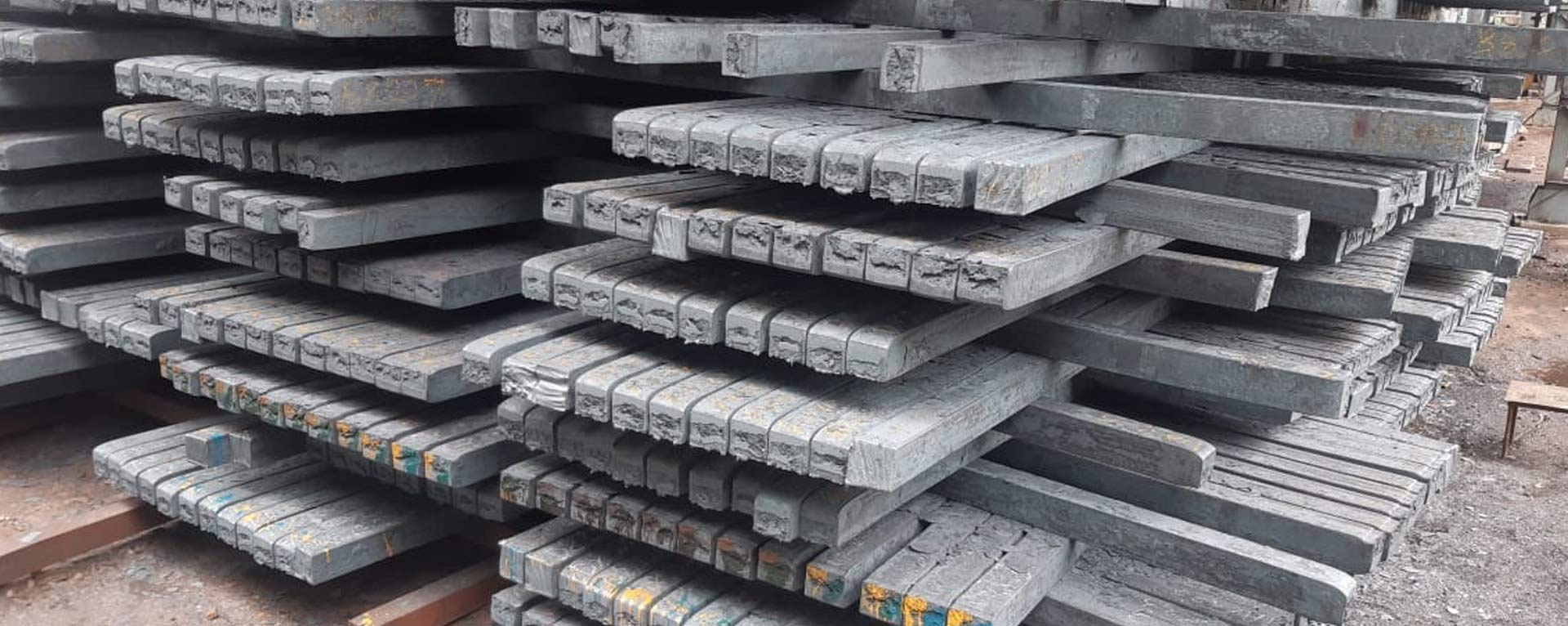

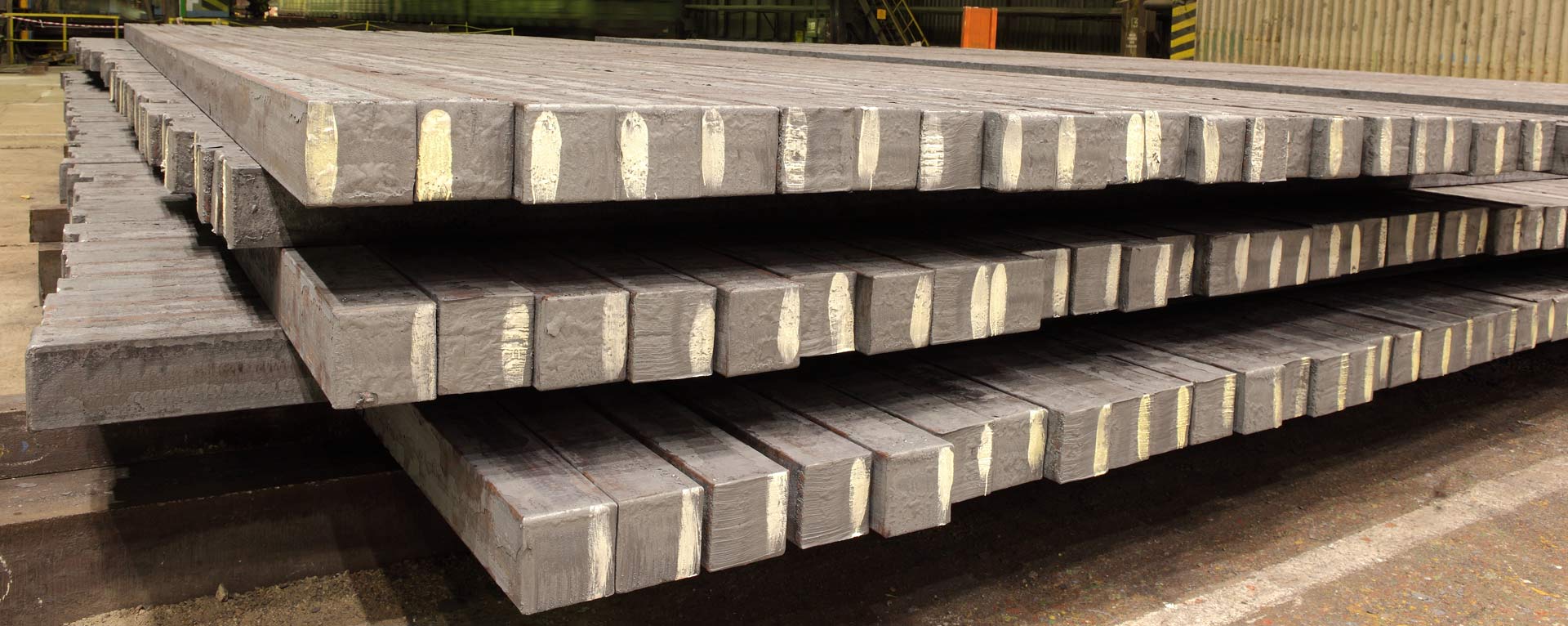

Square Bars

ShreeSatya Group supplies a wide range of Mild Steel (MS) & Alloy Steel Square Bars. Square Bars are used in cranes gantry, bullock carts axles, conveyors, truck trailers and tippers, bright bars, anchor bolts and other industries for engineering purposes. We offer a comprehensive range of Square Bars to our esteemed clients across verticals.

ShreeSatya Group square bars are extensively used for all types of structural appliances and fabrication projects where better strength and greater corrosion resistance is required. They are generally used for gears, lock components and pinions.

Square Bars manufactured by us are high in strength and can be used for tapping and drilling operations. These have great salient features like good strength, durability, reliability, corrosion resistance, close tolerances and more. We customise Square Bars to order length sizes and shapes and at market leading prices. These can also be fabricated and machined to meet up the piping needs of our clients.

View Specification

Certificates

ShreeSatya Group has been assessed and certified as an ISO 9001:2015 company meeting all the required parameters. The ShreeSatya Group company is BIS certified and has also received an ISI mark by the Bureau of Indian Standards.

Place Enquiry

For further details or any query, drop us a your details and let us take it up from there at the earliest.

Your Name

Phone

City

Your Message

Square Bars:: 10 mm to 63 mm.

Size in mm

Average Weight

KG/MTR

KG/FT

10 x 10

0.80

0.20

12 x 12

1.10

0.30

14 x 14

1.50

0.50

16 x 16

2.00

0.60

17 x 17

2.27

0.69

20 x 20

3.14

1.00

25 x 25

4.90

1.50

32 x 32

8.00

2.40

40 x 40

12.60

3.80

42 X 42

13.85

4.22

50 x 50

19.60

6.00

53 X 53

22.05

6.72

56 x 56

24.60

7.50

63 x 63

31.20

9.50

Rolling Tolerances

Size	Out of squareness	Weight	Length
up to 25 mm ± 0.5 mm 25 mm to 35 mm ± 0.6 mm 35 mm to 50 mm ± 0.8 mm 50 mm to 80 mm ± 1 mm 80 mm to 100 mm ± 1.3 mm 100 mm and above ± 1.6 % of side width.	± 75 % of total tolerance Specified on the size.	Size 10 to 16 mm ± 5 % 16 mm and above ± 3 %	For fixed length : ± 100 mm

Please Note: The data given above is indicative. Actual weights may vary.

SHREESATYA GROUP develops specific sections. Specific sizes in any section can be developed for economical and feasible quantity, in Mild Steel, High Tensile, En 8 / En 8D / EN 9 / EN 16 material.
